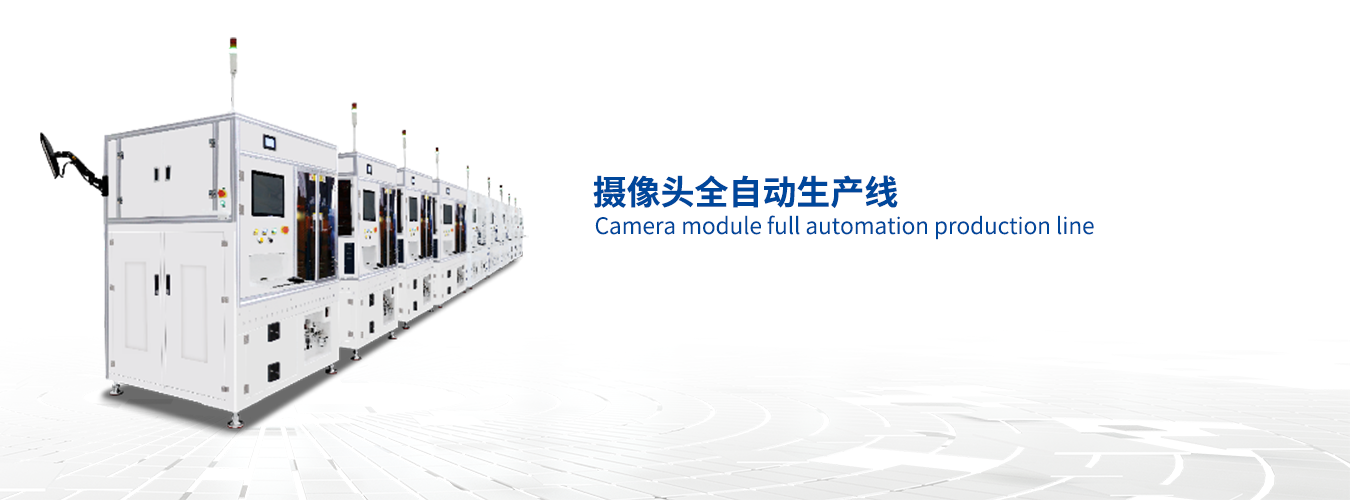

Camera module full automation production line
advantages introduction
Parameter configuration
High precision linear motor works with group voice coil motor to achieve high-speed and high-precision assemblyDesign of integrated heating station to assembly station
Class 1000 cleanroom standard
2D/3D multiple inspection data
Using a 5-megapixel CCD
CCD * 2 sets/assembly machine
The use of materials of the whole line meets Class 1000 Cleanroom requirement
1 set of gantry module/assembly machine
4 sets of voice coil motors / assembly machine
12 axes/assembly machine
Equipment accuracy: ± 0.01mm
UPH: 1200
Function Description
Assemble coil onto the designated flex, heat and cure it
The whole automation production line is applied to a class 1000 cleanroom workshop. The equipment is using high-precision linear motor and voice coil motor to assemble the product, working with with high-speed flying cameras to achieve fast and high-precision assembly. The assembly heating station adopts a segmented lifting design to integrate product assembly and heating curing to ensure product accuracy. The entire line is equipped with an inspection station, which performs 2D/3D multiple data detection and real-time compensation.
